About Applegate EDM
Located in Dallas, TX, Applegate EDM operates in a modern, 30,000 square foot, climate controlled manufacturing facility.
At Applegate EDM, we tackle complex, custom machining projects that others can’t touch. Our deeply-experienced team delivers high quality pieces on-time and on-budget. Our quality assurance policies and procedures have been perfected over 40 years of service and are backed by AS9100D, ISO9001:2015 and ITAR certifications. We’re problem-solvers and collaborative partners, working closely with some of the nation’s top aerospace, defense, and energy manufacturers as their leading supplier, helping them achieve their ambitious missions.
Capabilities

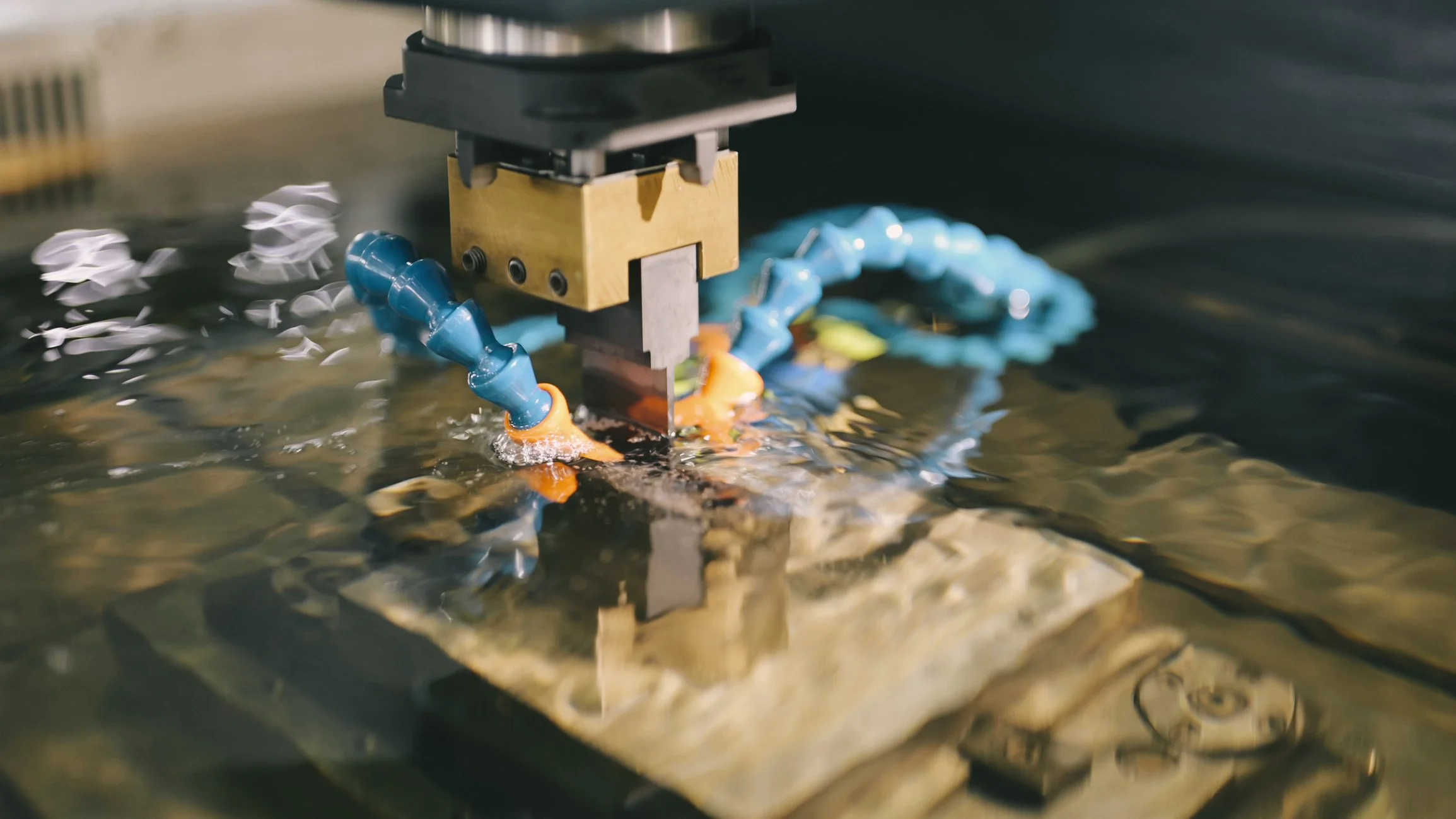

Sinker EDM
With our 16 Sinker EDM machines, not only can we can provide high speed and accuracy and low electrode wear, but we can produce numerous parts simultaneously.
Sinker feature accuracy up to +/- .0002” with 32 RMS surface finish. Depth up to 17”.
(2) RoboForm 35P – 31” X 16” X 12”
(6) RoboForm 55P – 48” x 34” x 16”
(3) RoboForm 51 – 30” x 19” x 20”
(4) Form P300 – 41” x 29” x 17”
(1) Form P600 – 48” x 32” x 19”
Wire EDM
At Applegate, we have 9 dedicated Wire EDM machines enabling us to tackle numerous projects simultaneously and equipping us to taper and fashion different profiles.
(1) Robofil 640 – 52” X 40” x 21”
(1) Robofil 440CC – 16 – 48” x 28” x 16”
(1) Robofil 440CC – 24 – 48” x 28” x 24”
(2) CUT 200Sp – 40” x 22 x 9”
(1) CUT 300Sp – 48” x 28” x 16”
(1) CUT P 350 – 40” x 22” x 9”
(1) CUT P 550 – 48” x 28” x 16”
(1) CUT P 800 – 50” x 40” x 21”
Hole Drill EDM
Applegate maintains 5 EDM Hole Drill machines; which we use to fabricate solutions for numerous industries including aerospace and energy. With 5 axis configuration capabilities, we can easily drill holes at any angle on an inclined surface work piece.
(1) RT3020S – 50” x 15” x 22”
(2) FT3200 – 50” x 15” x 22”
(2) CM AH655C – 58” x 38” x 22”
Quality Assurance
Our certified QA team is the backbone of our production and is involved throughout every step of the process.
Whether it’s first article or final inspection, our dedicated inspectors work with machinists to ensure that all parts meet design specifications and engineering tolerances, and that all parts are delivered on-time.
We utilize 2 CMMs (Coordinate Measuring Machines), a Zeiss Contura G2 and a Zeiss DuraMax to actively scan and probe touch points to accurately measure the geometry of each part we machine.
ITAR and AS9100D certifications.
